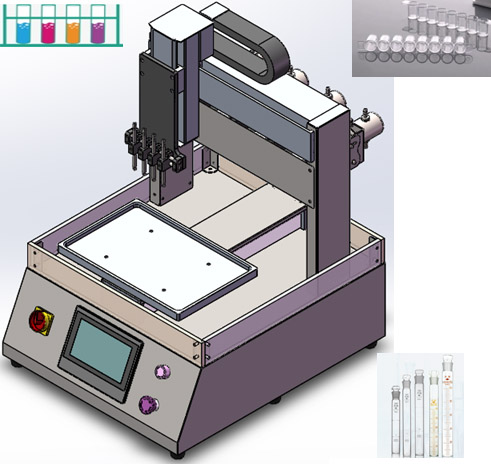

Gz-xyz-Three-axis single-platform mobile loading machine

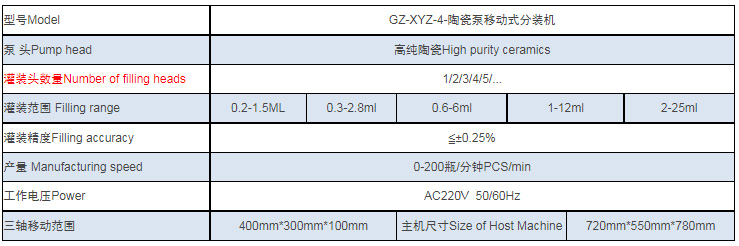

Features: 1. Use an intelligent operating system; 2. Filling part adopts: high-precision ceramic pump, through the adjustment of pump head Angle to control the amount of liquid injection in each circle, with high measurement accuracy and repeatability; 3.304 stainless steel appearance, desktop structure, practical and convenient; 4. Filling part adopts: high purity ceramic pump; 304 stainless steel appearance; 5. The desktop design of the device, X-Y-Z-three axis interpolation movement mode; 6. The machine adopts the way of pallet support, suitable for unstable bottle type such as glass tube, centrifugal tube, instrument tube, reagent bottle, lithium battery and so on; 型号 Model GZ-XYZ-4- 陶瓷泵移动式分装机 泵头 Pump head 高纯陶瓷 High purity ceramics 灌装头数量 Number of filling heads 4 灌装范围 Filling range 0.2-1.5ML 0.3-2.8ml 0.6-6ml 1-12ml 2-25ml 灌装精度 Filling accuracy ≦ ±0.3% 产量 Manufacturing speed 0-200 瓶 / 分钟 PCS/min 工作电压 Power AC220V 50/60Hz 三轴移动范围 400mm*300mm*100mm 主机尺寸 Size of Host Machine 720mm*550mm*780mm ...
GZ-XYZ-三轴移动式分装机
特点：
1.采用智能的操作系统；
2.灌装部分采用：高精度陶瓷泵，通过泵头角度调整控制每一圈的注液量，具有极高的计量精度和重复一致性;
3.304不锈钢外观，台式结构，实用方便；
4.灌装部分采用：高纯陶瓷泵；采用304不锈钢外观；
5.本设备台式设计，X-Y-Z-三轴插补式移动方式；
6.本机采用托盘承托的方式，适用站不稳的瓶型 如：玻璃管、离心管、仪器管，试剂瓶、锂电池等等；
