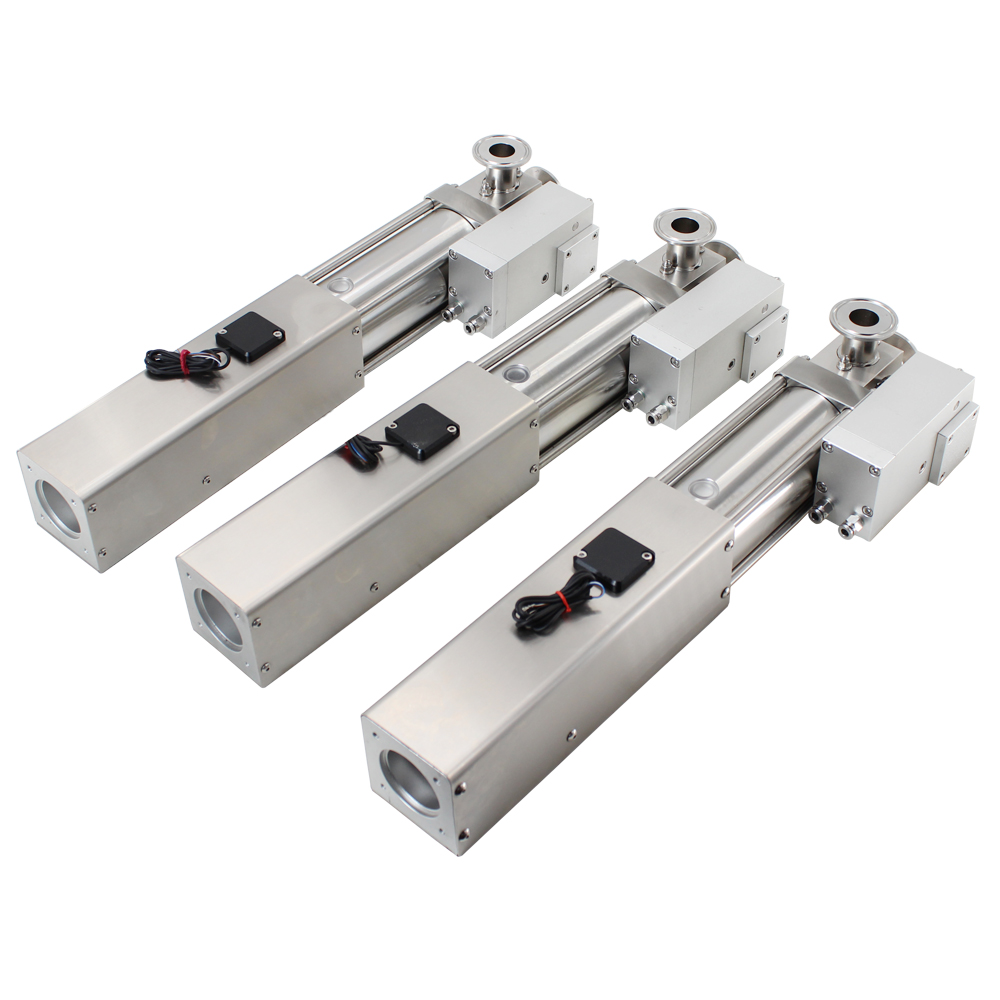

DS-R3 series electric rotary pump
Features:
1. Haiwu DS-R pump adopts a precision ceramic rotary valve to control the input and output of the liquid. The precision-ground ceramic plunger ensures stable and accurate liquid volume measurement.The stepping motor or servo motor drives the precise screw drive system, All injection parameters can be set through the color touch screen without any mechanical adjustment of the pump, achieving accurate control of injection volume.
2. Extremely high metering accuracy and repeat consistency; accuracy is better than plus or minus 0.5%.
3. Suitable for quantitative filling of medium and high viscosity liquids and liquid containing particles, such as sauce and paste.The pump configured with the servo motor is especially suitable forhigh-speed automatic alkali-manganese battery production lines to inject zinc paste.
4. The contact material metal part is made of 316 stainless steel, which has excellent corrosion resistance.
|
型号 Model |
柱塞直径 Plunger Dia |
行程 Stroke |
注液量范围 Dispensing Vol |
循环速度 Cycle Rate |
|
DS-R4-55 |
54mm |
25mm |
0-57ML |
0-60 times/min |
|
DS-R4-110 |
50mm |
0-114ml |
0-40 times/min |
|
|
DS-R4-170 |
75mm |
0-171ml |
0-30 times/min |
|
|
DS-R4-220 |
100mm |
0-228ml |
0-25 times/min |
|
|
DS-R5-500 |
80 mm |
110 mm |
0-550ML |
0-30 times/min |
|
DS-R5-1000 |
114 mm |
110 mm |
0-1100ML |
0-25 times/min |
|
DS-R5-2000 |
114 mm |
200 mm |
0-2040 ML |
0-20 times/min |
