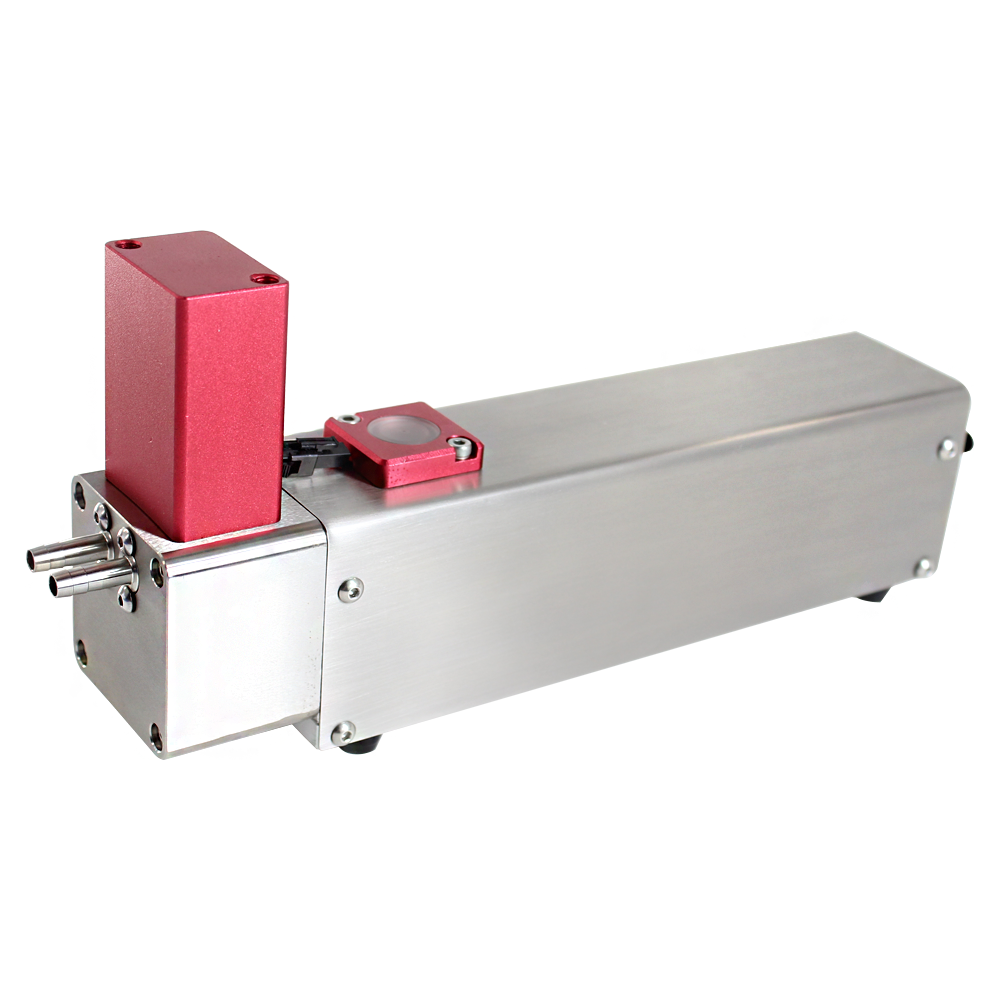

DB-C Series Precise Micro Volume Dispensing Pump
Features:
1. The DB-C series metering pump has extremely high metering accuracy and repeatability, with an accuracy of better than ±0.05%.The unique top-mounted micro control valve prevent air bubble and provide stable accuracy.
2. Suitable for quantitative injection of medium and low viscosity liquids. This series of pumps is especially suitable for micro-volume liquid injection. Under laboratory conditions, some models can accurately and stably separate and spit out 0.2uL volume for low-viscosity liquids.
3. Suitable for various applications such as pharmaceuticals, biochemical liquids, gel liquids, micro capacitors, and battery electrolytes.
4. The contact material metal part is made of 316 stainless steel, which has excellent corrosion resistance..
|
型号 Model |
柱塞直径 Plunger Dia |
行程 Stroke |
注液量范围 Dispensing Vol |
循环速度 Cycle Rate |
|
DB-C1-0.24 |
5mm |
12.7mm |
0-0.24ML/次 |
0-80次/分钟 times/min |
|
DB-C1-0.69 |
8mm |
0-0.69ML/次 |
||
|
DB-C1-1.2 |
11mm |
0-1.2ML/次 |
||
|
DB-C1-2.5 |
16mm |
0-2.5ML/次 |
